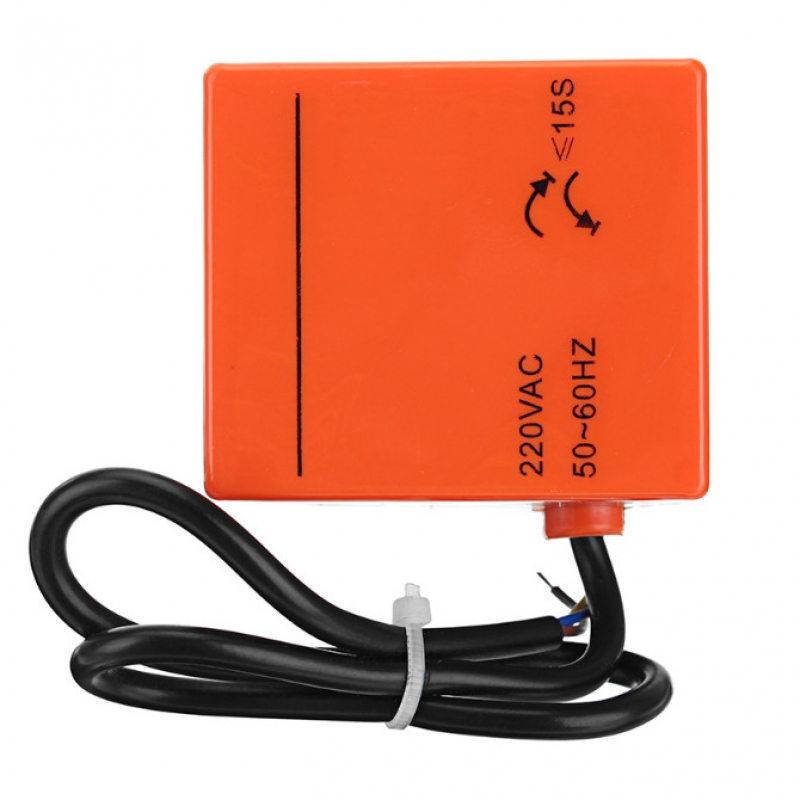

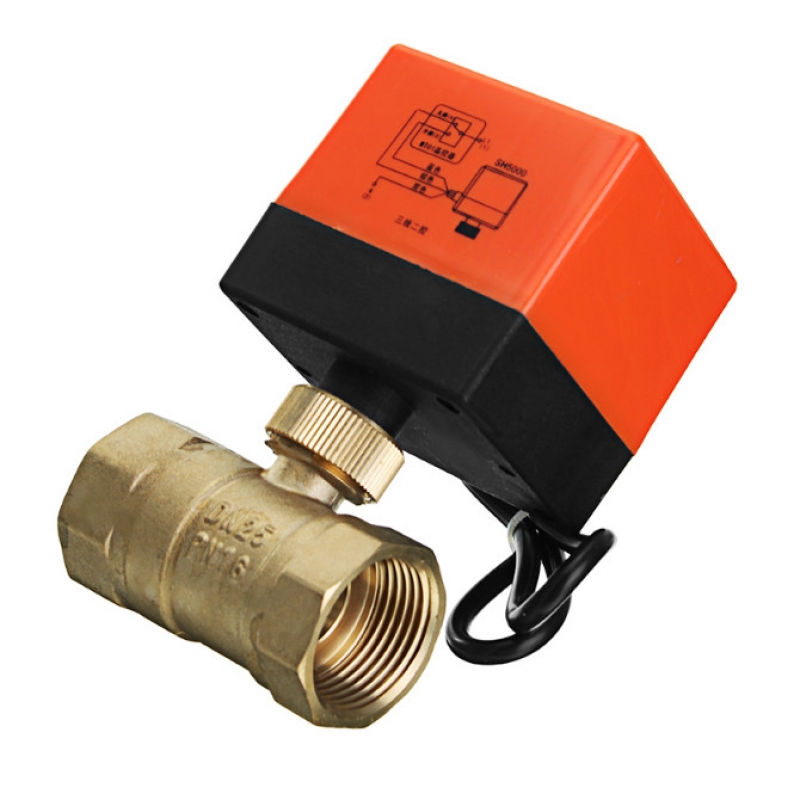

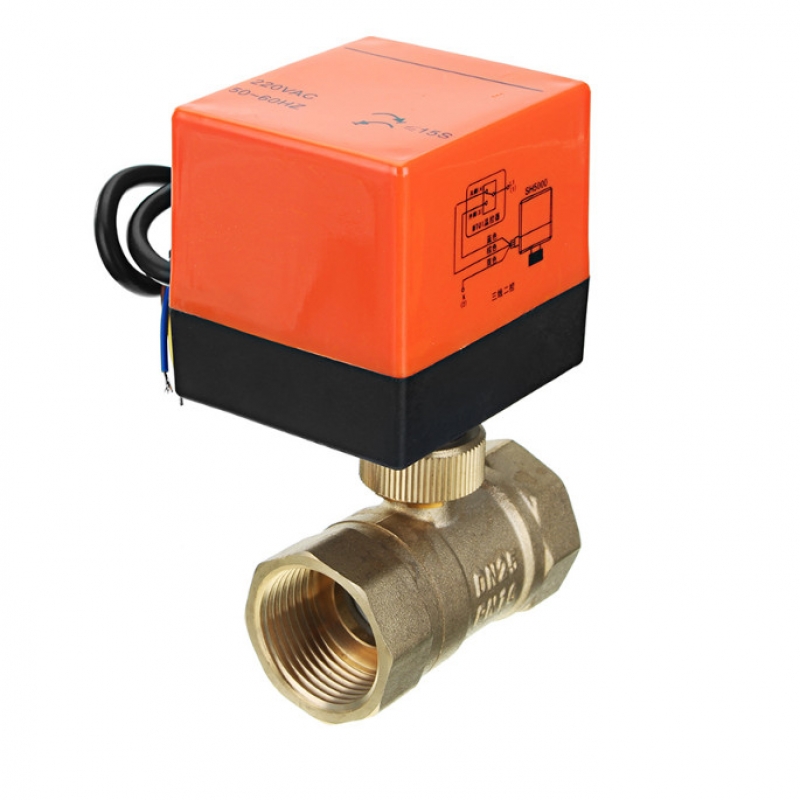

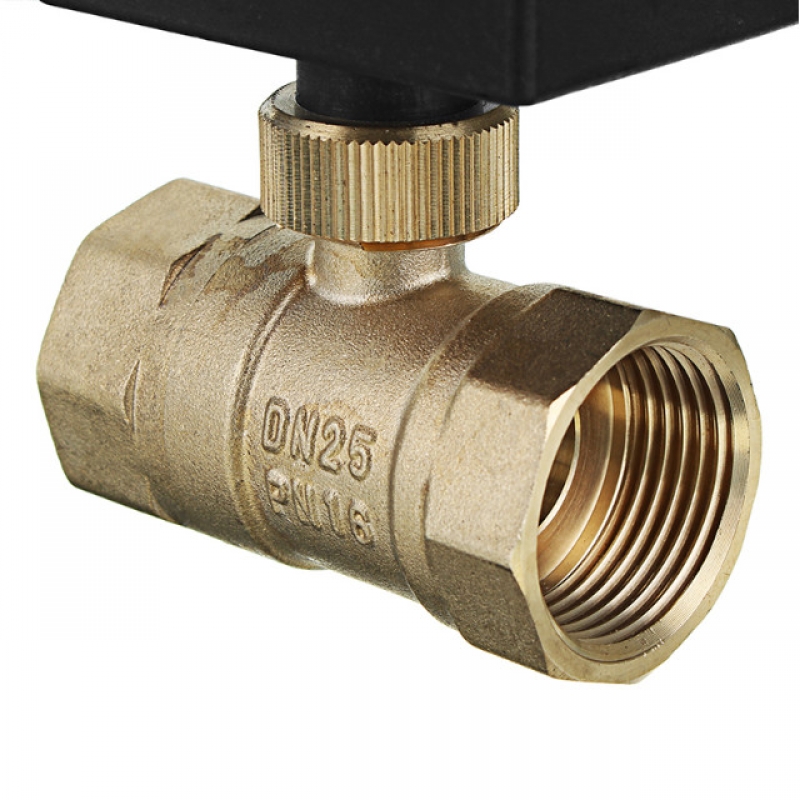

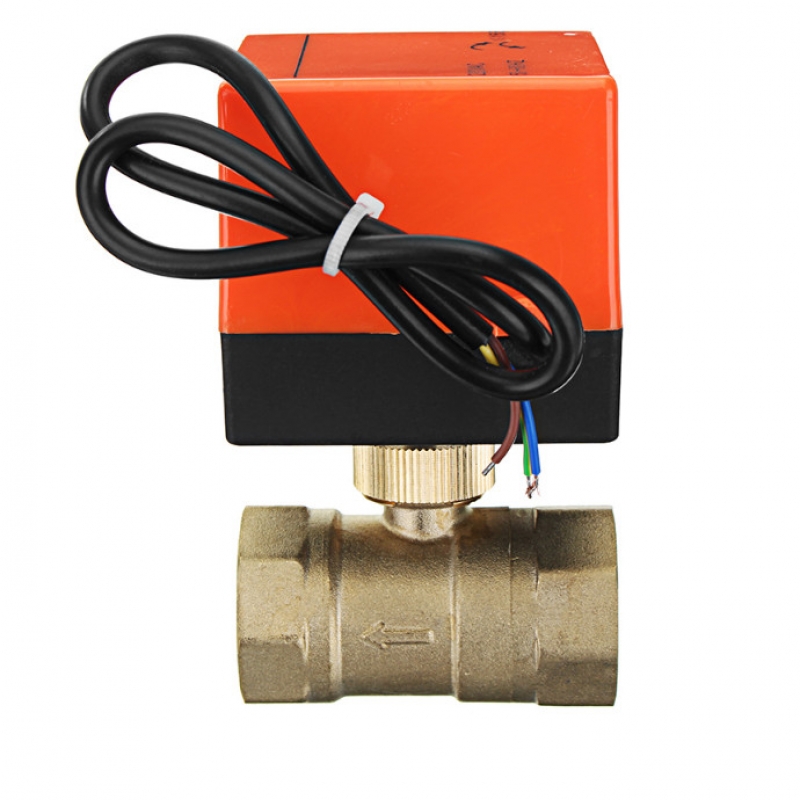

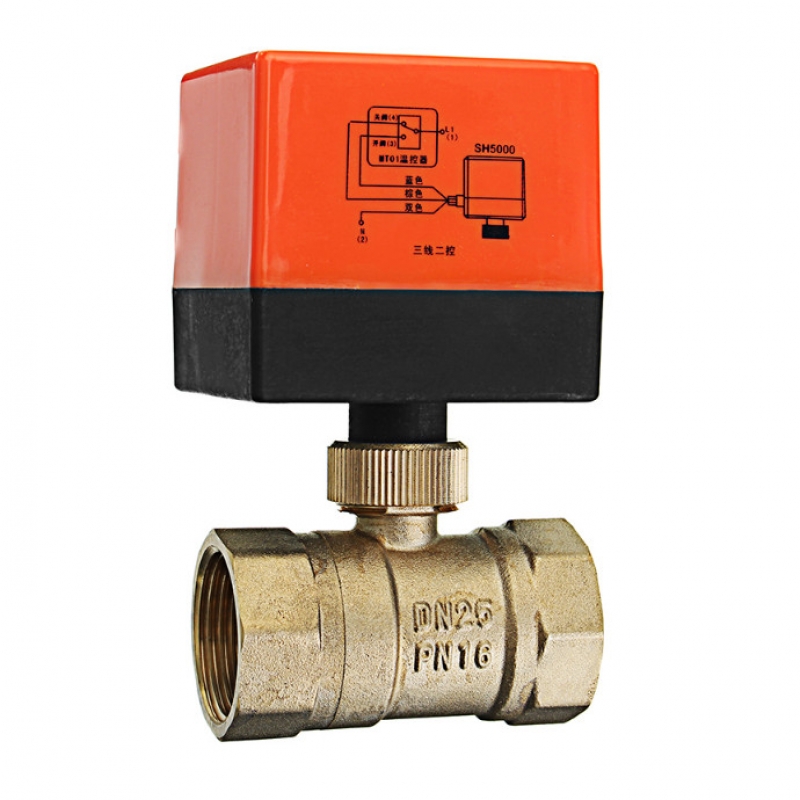

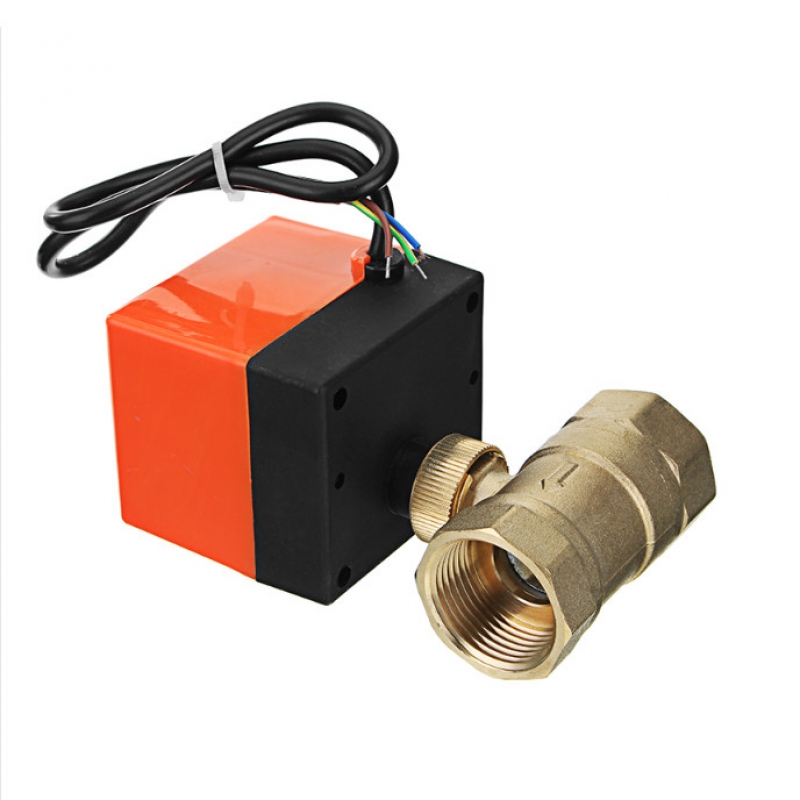

Cold/Hot water, 60% Ethylene Glycol Motorized Brass Ball Valve
- $34.99
- Ex Tax: $34.99
- Product Code: 86037389USEN
- Availability: In Stock
FEATURES Straight flow, large flow, no blocking by the slag Good waterproof and dirt-proof function (IP65) Actuator is easily disassembled and assembled Actuator can be installed after the equipment and pipes are installed, so as to improve efficiency LED indicates when switch on/o..
Available Options
FEATURES
- Straight flow, large flow, no blocking by the slag
- Good waterproof and dirt-proof function (IP65)
- Actuator is easily disassembled and assembled
- Actuator can be installed after the equipment and pipes are installed, so as to improve efficiency
- LED indicates when switch on/off the valve, to detect whether the valve is wholly on/off
- Highly energy saving, long life design
- Closed tightly due to high pressure when closing
- Actuator can be assembled in two directions
Specifications
| Medium | Cold/Hot water, 60% Ethylene Glycol |
| Material | Brass |
| Power Supply | AC 220V |
| Model | DN25(G 1") |
| Structure Forms | Two Ways |
| Operation Mode | Three Floating Point (24V AC) or ON/OFF |
| Power | 6W (Only when the valves open and close) |
| Running Time | 5-15 Seconds |
| Nominal Pressure | 1.6MPa |
| Medium Temperature | 2℃~95℃ |
| Maximum Differential Pressure | 1.0MPa |
| Protection Class | IP65 |
| Connection Mode | ZG Internal Thread |
| Overall Size | 6.8x6x12.8cm/2.68x2.36x5.04" |
Package Includes
- 1 x Motorized Brass Ball Valve
