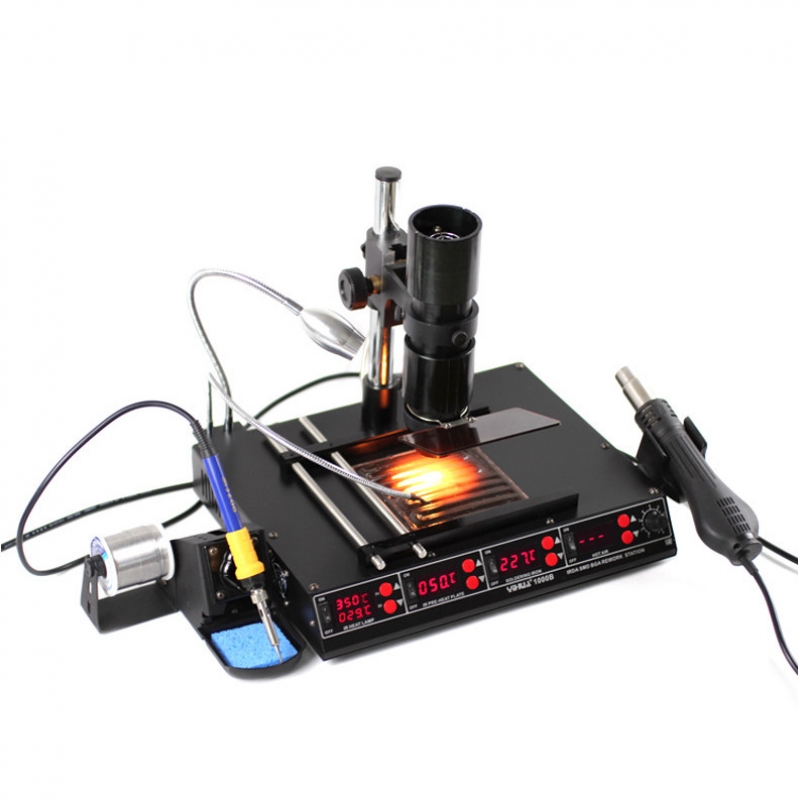

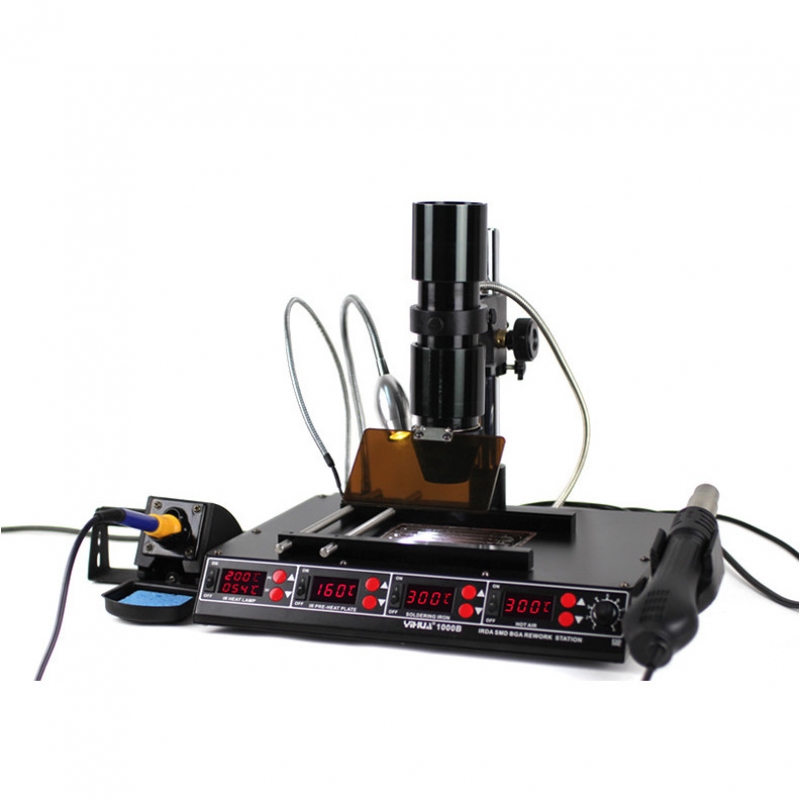

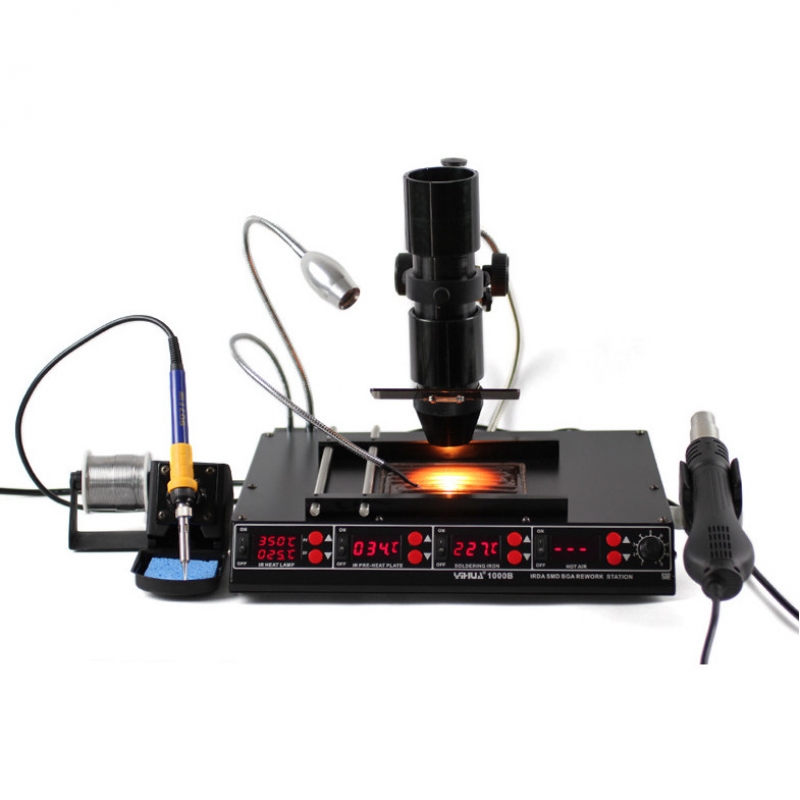

1000B 4 in 1 Infrared Bga Rework Station SMD Hot Air Gun + 540W Preheating Station + 75W Soldering Irons
- $18.40
- Ex Tax: $18.40
- Product Code: 86035593USEN
- Availability: In Stock
FEATURESUsing the new SAMSUNG microcomputer processor PID programmable temperature control technology and uses an infrared source and optics to target heat to individual components without dislodging other SMT parts by way of eddies air currentsAdopt infrared weld technology which independent exploration, infrared penetration strength, components uniform heating, beyond the traditional hot air hea..
FEATURES
Using the new SAMSUNG microcomputer processor PID programmable temperature control technology and uses an infrared source and optics to target heat to individual components without dislodging other SMT parts by way of eddies air currents
Adopt infrared weld technology which independent exploration, infrared penetration strength, components uniform heating, beyond the traditional hot air heating vowed to prevent blow off the IC surrounding small components
Technician focused infrared heat is easy to target most component removal/replacement and re-work
Infrared heat source bulbs are long-lived, unexpensive and easily replaced
Has bright delicate, low voltage LED lighting, safety and energy conservation
It has External Sensor Temperature control mode, that is detected by the sensor IC surface temperature control temperature, this function is good for freshman operation ,it’s safe way protect components
MountTechnology (SMT) components 15-35cm in size
This machine has 540W heating system , widely to 120mm*120mm
Preheating plate color is black ,from the photics point of view, black color easy to absorb heating, shorten the warm-up time
Powerful human function design
This machine also have hot air reworks and soldering iron function, if you have the device ,you can used for all of the components solder ,de-soldering ,preheating ,repair all components ,especially Micro BGA components
Specifications
Voltage | AC220V |
Max Power Consumption | 1415W Preheating Station Parts |
Max Power Consumption | 540W |
Light-Emitting Components | Far Infrared Heating Plate |
Temperature Range | 50-300°C |
Display Type | LED |
Preheating Area | 120*120MM Infrared Lamp Part |
Max Power Consumption | 150W |
Temperature Range | 100-350°C |
Display Type | LED |
Effective Irradiation Area | 35*35MM Soldering Station Part |
Max Power Consumption | 75W |
Heating Components | Imported Heater |
Tip of Ground Voltage | <2mV |
Tip Ground Impedance | <2 ohm Hot Air Reworks Part |
Max Power Consumption | 700W |
Airflow Type | Brushless Fan Spiral Wind |
Air Flow | ≤130 L/min |
Handle Cable Length | ≥100cm |
Package Includes
1 x 1000B
1 x Iron Seat
1 x Hot Air Gun
1 x Iron Handle
1 x Manual
